Elipson A680 6-Channel / 3-Zone Power Amplifier – 6 × 80W or 3 × 150W Bridged... 2 years warranty

Overview

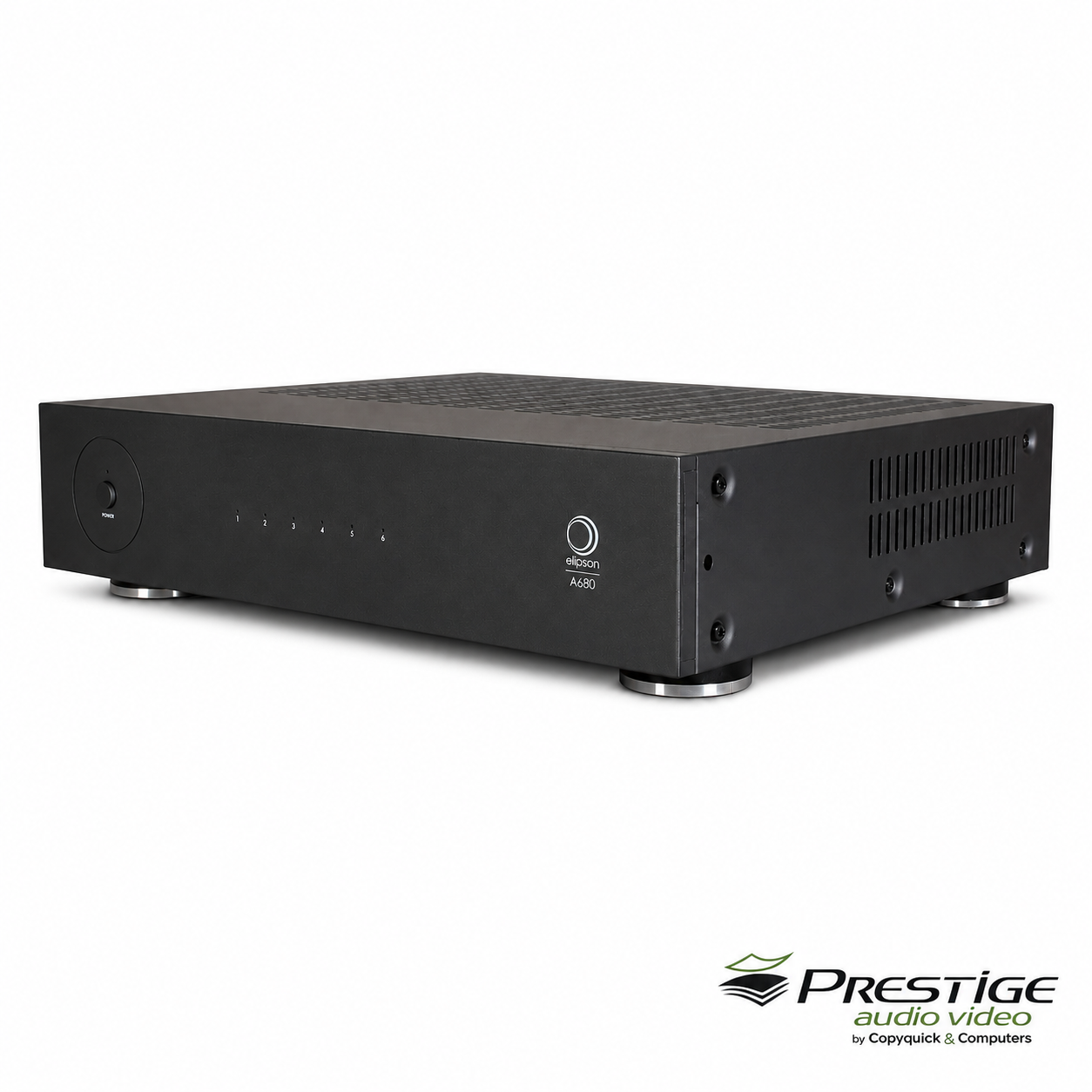

The Elipson A680 is a versatile six-channel power amplifier designed for premium multi-room audio systems, custom installations and home cinema applications.

It can power up to three independent stereo zones, delivering 6 × 80 watts into 4 ohms. Each stereo zone can also be bridged to provide up to 3 × 150 watts into 8 ohms, making the amplifier suitable for larger or more demanding loudspeakers.

The A680 features two stereo BUS inputs that can distribute a common audio source across all three zones, as well as an individual stereo RCA input for each zone. Independent gain controls allow the output level of every channel to be precisely adjusted.

With its robust metal chassis, 2U rack-mountable design, 12V trigger connectivity and automatic signal detection, the Elipson A680 is ideal for professional home integration, distributed audio and home theatre installations.

Key Features

Six Channels and Three Independent Zones
The Elipson A680 incorporates six amplification channels arranged into three stereo zones. Each zone can be connected to a separate audio source or configured to receive a shared signal from one of the amplifier’s BUS inputs.

This flexible architecture makes it possible to create a complete three-zone audio installation using a single amplifier.

Powerful Stereo Amplification
In standard stereo operation, the A680 delivers:
6 × 80 watts into 4 ohms
This configuration is ideal for powering three pairs of speakers in separate rooms or listening areas.

Bridged Mono Operation
Each stereo zone can be bridged to deliver greater power:
3 × 150 watts into 8 ohms
Bridge mode is particularly useful for powering more demanding speakers, front channels in a home cinema system or three separate mono zones.

Dual Stereo BUS Inputs
Two stereo RCA BUS inputs, identified as BUS A and BUS B, allow the same audio source to be distributed across several zones.
Each zone can be individually configured to use:
BUS A
BUS B
Its own dedicated stereo line input
The corresponding BUS outputs allow the signal to be passed on to another amplifier.

Independent Inputs for Each Zone
Each of the three amplified zones includes its own stereo RCA line input. This allows three different audio sources to be connected simultaneously.

Each of the six channels also features an individual input gain adjustment for precise system calibration.

12V Trigger and Automatic Start-Up
Each zone includes a 12V trigger input and output, allowing the amplifier to switch on automatically when used with compatible audio equipment.

The A680 also supports automatic signal detection and automatic standby operation.

USB Power Output
A powered USB 5V / 2A port can be used to supply power to a wireless audio receiver, streaming adapter or other compatible accessory.

Rack-Mountable Construction
The amplifier uses a robust metal chassis with an anodised front panel. Its standard 2U format is suitable for installation in an AV rack.

Rack-mounting brackets are included.

Applications

The Elipson A680 is suitable for:
Multi-room audio installations
Three-zone stereo systems
Home cinema power amplification
Custom residential AV installations
Rack-mounted audio systems
Restaurants, hotels and commercial spaces
Streaming systems using separate network audio players
Installation speakers and in-ceiling speakers

Conclusion
The Elipson A680 is an excellent solution for installations requiring flexible, powerful and discreet amplification.

Its combination of six amplification channels, three independent zones, bridged operation, BUS signal distribution and rack compatibility makes it equally suitable for sophisticated multi-room systems and dedicated home cinema installations.

It is particularly well suited to professional AV integrators and users seeking a reliable amplifier capable of powering several pairs of speakers from one compact chassis.
